At TMC Technology Ltd we specialise in the design of electronics systems based on the latest technologies:-

Embedded systems

• Microchip: one of the worlds most popular microcontroller manufacturers
• Intel: Well known for top of the range chip
• H: For volume production
• ST microelectronics

Most systems would also require some Field Programmable Gate Array (FPGA) and we're familiar with:

• Altera
• Lattice
• Xilinx

As part of the product design we will also take care of the power supply and any analogue signal processing required. So whether you need to measure at low speeds (a few samples per second) or very high frequencies (100MHz+) we have the knowledge and expertise to meet your requirements.

Available equipment includes:

• Numerous oscilloscopes including Agilent MSO6104A 1GHz mixed signal oscilloscope
• Logic analyser
• Spectrum analyser
• Signal & pulse generators, power supplies, etc.
• PC Controlled DVMs for automated testing
• Hi Pot & ground testers for safety testing.
• HP6050A Electronic Loads
• Racal  6103 Digital Radio Test Set


CAD

Our CAD systems include:

• Pads PCB: PCB Layout software for high speed circuits
• Pads Logic: Schematic capture
• Orcad Design: Schematic Design
• Hyperlynx: PCB signal integrity and analysis
• SolidWorks: 3D Modelling package with sophisticated analysis capabilities
• OneCAD: CAD Software with post processor to drive CNC Mill

Production

Our Prototype production facilities include:

• Quad IVc automated Pick & Place machine capable of placing 0603

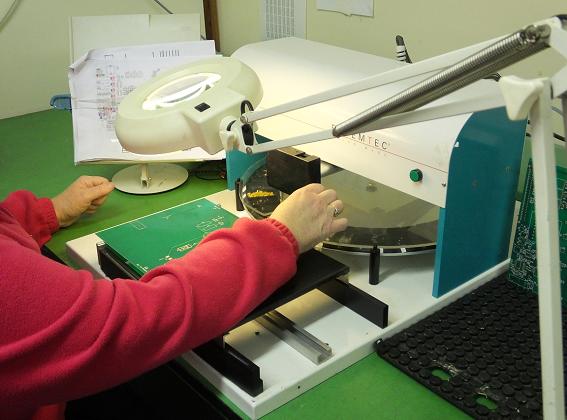

• Essemtec manual pick & place for building single boards
• PDR 1600E machine with camera for placing & replacing BGA devices
• Nicolet NXR1400 XRAY machine for inspection
• Screen print & manual solder paste dispensing capabilities
• Gallenkamp oven for baking components & PCBs prior to assembly
• Quad QCR 942C & Unifab Quantum 30 reflow ovens
• Haas TM1 CNC mill
